A Comprehensive Guide to Resistors in Electronics

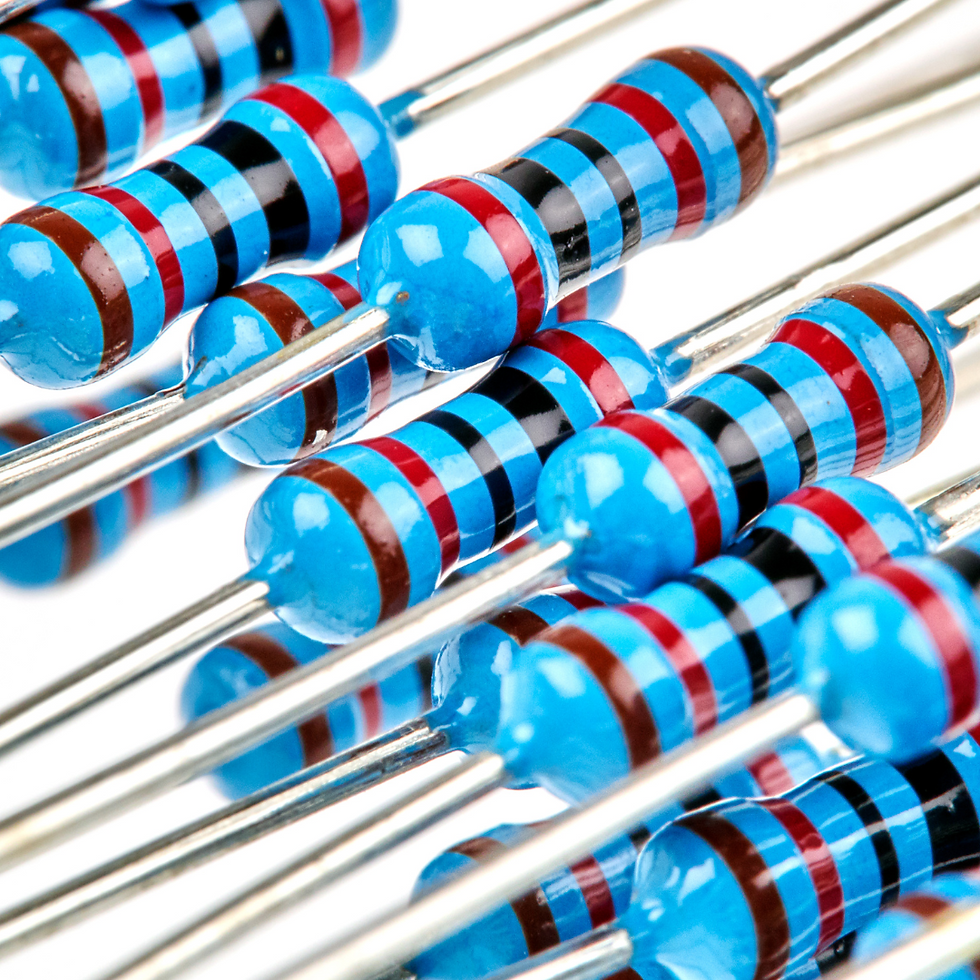

Welcome to the electrifying world of resistors! You may not realize it, but these tiny components play a crucial role in powering our modern electronic devices. From smartphones and computers to automotive systems and robotics, resistors are the unsung heroes that keep everything running smoothly. In this comprehensive guide, we'll dive deep into the realm of resistors, exploring their various types, how to identify their values, and understanding their vital function in electronic circuits. Whether you're a seasoned electronics enthusiast or just starting out on your journey, get ready to become a resistor aficionado as we unravel the mysteries behind these indispensable components! So grab your multimeter and let's embark on an electrifying adventure together! What are Resistors? In simple terms, resistors are passive two-terminal devices that impede the flow of electric current in a circuit. They do so by introducing resistance, hence their name! Resistance is measured in ohms (Ω) and determines how much opposition or "resistance" a resistor provides to the current passing through it. Resistors come in various shapes and sizes, but they all serve one common purpose: to regulate the flow of electricity. Think of them as traffic controllers for electrons within an electrical circuit. Just like how traffic lights control the speed and direction of cars on the road, resistors control the flow and intensity of electric currents. One important thing to note is that resistors generate heat when current flows through them. This heat dissipation is known as power dissipation and is typically specified by manufacturers as a maximum wattage rating for each resistor model. Exceeding this limit can lead to overheating or even damaging the resistor itself. Now that we have a basic understanding of what resistors are let's dive into different types available on the market today! Types of Resistors When it comes to resistors, there are a variety of types available, each with its own unique characteristics and applications. Let's explore some of the most common types:

1. Carbon Composition Resistors: These traditional resistors are made from a mixture of carbon powder and ceramic binders. They have high stability but can be physically larger than other types.

2. Film Resistors: Made by depositing a thin film of metal or carbon onto an insulating substrate, film resistors offer excellent precision and stability. They come in different varieties like carbon film, metal film, and thick-film.

3. Wirewound Resistors: These resistors consist of a coil or wire wound around a ceramic core. They provide high power ratings and low resistance values but can be more expensive compared to other types.

4. Variable Resistors: Also known as potentiometers or trimmers, variable resistors allow for adjustable resistance settings within electronic circuits.

5. Surface Mount Technology (SMT) Resistors: Designed for compact circuit boards, SMT resistors are small and ideal for densely packed electronics.

How to Identify a Resistor's Value Have you ever looked at a resistor and wondered how to determine its value? Don't worry, you're not alone. Identifying the value of a resistor can seem like decoding a secret message, but with a little knowledge, it becomes much easier. The most common way to identify a resistor's value is by reading its color-coded bands. These bands represent different numbers that combine to form the resistance value. Each color corresponds to a specific digit or multiplier, allowing you to calculate the resistance accurately. To start deciphering the code, look for the first band closest to one end of the resistor. This band represents the first digit of the resistance value. The colors range from black (0) to white (9). Note down this number. Next, find the second band and note down its corresponding digit as well. This number represents the second significant figure in your calculation. Moving on, locate and record any third band if present. This indicates an additional significant figure used for greater precision in higher tolerance resistors. Now comes an important step: determining the multiplier or power of ten associated with your resistor's color-coding. The fourth band signifies this multiplication factor which determines whether your final calculation will be in ohms (Ω), kilohms (kΩ), or megohms (MΩ). Some resistors may have an extra fifth or sixth band indicating their tolerance level – how close they are expected to match their stated resistance values under normal operating conditions. By understanding these color codes and following these steps carefully, you'll be able to confidently identify any resistor's value without breaking into a sweat! Remember that practice makes perfect when it comes to identifying resistors' values based on their color-coded bands! So grab some resistors and get ready for some hands-on learning! The Role of Resistors in Electronic Circuits Resistors play a crucial role in electronic circuits, acting as passive components that control the flow of electrical current. They are designed to resist the flow of electric charge and convert electrical energy into heat. But what exactly is their purpose? One key function of resistors is to limit current flow within a circuit, preventing damage to sensitive components. By introducing resistance into the circuit, they help protect other components from excessive currents that could potentially cause overheating or even failure. In addition to current limiting, resistors also determine voltage levels within a circuit. They can be used to create voltage dividers, allowing for precise control over different parts of a circuit. Another important role of resistors is signal conditioning. In many electronic applications, signals need to be adjusted or modified before they can be effectively processed by other components. Resistors can be used in various configurations such as voltage dividers and attenuators to modify signal amplitudes and impedance matching. Furthermore, resistors contribute significantly to stability and functionality in electronic devices by providing biasing or reference voltages. These reference voltages ensure proper operation and accuracy in analog circuits such as amplifiers and sensors. Without the presence of resistors in electronic circuits, achieving desired performance levels would become immensely challenging if not impossible. Their ability to regulate current flow, adjust signal levels, provide stability, and act as essential building blocks make them indispensable components within any electronic system. As technology continues advancing at an unprecedented pace, it's fascinating to see how resistor technology evolves alongside it - from higher power handling capabilities for demanding applications like renewable energy systems to miniature surface-mount versions for compact consumer electronics. Common Applications of Resistors Resistors are an essential component in a wide range of electronic devices and circuits, playing a crucial role in controlling the flow of electric current. Their versatility makes them indispensable in various applications across different industries. Let's explore some common uses of resistors. One prominent application is voltage division, where resistors are used to create specific voltage levels within a circuit. This technique is often employed in audio equipment, such as amplifiers and mixers, to adjust signal levels for optimal performance. Another important use is current limiting or protection. Resistors can be incorporated into circuits to regulate the amount of current flowing through sensitive components like LEDs or transistors. By providing resistance, they prevent excessive currents from damaging these components. In communication systems, resistors play a vital role in impedance matching. They ensure that signals transmitted between different parts of the system have consistent characteristics and minimize unwanted reflections or distortions. Resistive heating is another common application where high-power resistors convert electrical energy into heat energy. This principle finds its application in electric stoves, water heaters, and industrial processes requiring controlled heating elements. Additionally, sensors and measurement instruments utilize precision resistors for accuracy and stability when converting physical quantities into measurable electrical signals. These include temperature sensors (thermistors), strain gauges, light-dependent resistors (LDRs), and more. In summary, resistors are versatile components with a wide range of applications across various industries. Their ability to control current flow, adjust voltage levels, and provide stability makes them indispensable in countless electronic devices and circuits. Choosing the Right Resistor for Your Project Choosing the right resistor for your project is crucial to ensure optimal performance and functionality. With so many options available, it can be overwhelming to determine which one is best suited for your specific needs. Here are some factors to consider when selecting a resistor:

1. Resistance Value: The first step in choosing a resistor is determining the desired resistance value. This value will depend on the electrical characteristics of your circuit and the purpose of the resistor within it.

2. Power Rating: Resistor power ratings indicate how much power they can safely dissipate without overheating or failing. It's important to choose a resistor with a power rating that exceeds the maximum power dissipation expected in your circuit.

3. Tolerance: Resistors have manufacturing tolerances that affect their actual resistance compared to their stated value. If precise resistance values are critical, select resistors with lower tolerance ratings.

4. Temperature Coefficient: Some resistors exhibit changes in resistance due to temperature variations. Consider the temperature coefficient of a resistor if you expect significant temperature fluctuations in your application.

5. Package Size: The physical size of resistors varies depending on their wattage and construction type (through-hole or surface mount). Ensure that you select a package size that fits within your design constraints.

6. Cost: Budgetary considerations may also play a role in choosing resistors for your project, especially if large quantities are needed.

By carefully considering these factors, you can narrow down your options and choose the right resistor for your project's requirements. Troubleshooting Common Issues with Resistors Resistors are essential components in electronic circuits, but like any other component, they can sometimes encounter issues. Understanding how to troubleshoot common problems with resistors can save you time and frustration during the troubleshooting process. One common issue is a burnt or damaged resistor. This can happen if the resistor is subjected to excessive current or power dissipation. In such cases, it's important to replace the damaged resistor with one of the same value and wattage rating. Another problem that may arise is an open circuit in a resistor. This occurs when there is a break in the resistor's internal connection, resulting in no electrical continuity. To check for this issue, use a multimeter to measure resistance across the terminals of the suspected resistor. If there is infinite resistance (open circuit), then you know it needs to be replaced. On the other hand, a shorted resistor occurs when there is no resistance between its terminals. This often happens due to excessive heat or damage caused by soldering errors. To detect a shorted resistor, again use a multimeter and measure resistance across its terminals. If you get nearly zero ohms (short circuit), it means that the resistor has failed and needs replacement. Sometimes resistors may also change their values over time due to aging or exposure to extreme conditions like temperature fluctuations or humidity levels outside of their specified range. These changes can affect overall circuit performance and accuracy of calculations requiring precise resistance values. To avoid these issues altogether, it's crucially important to select resistors that match your project requirements accurately from trusted suppliers who provide quality components within specified tolerances and ratings suitable for your application environment. Remember that proper handling during installation - avoiding overheating during soldering processes - will help prevent unnecessary damage as well as double-checking connections against schematics before powering up your circuits could significantly reduce risks of encountering common problems associated with resistors' functionality. Future Developments in Resistor Technology The field of resistor technology is constantly evolving, with new developments and innovations on the horizon. As electronic devices become smaller and more powerful, resistors need to keep up with these advancements. One area where future developments are expected is in miniaturization. Smaller resistors will be needed to fit into the compact designs of smartphones, tablets, and other portable devices. Researchers are exploring nanoscale materials and fabrication techniques to create ultra-small resistors that maintain high performance. Another exciting development is the integration of active components within resistors. This concept combines resistance with other electronic functions such as amplification or filtering capabilities. By incorporating additional functionalities within a single component, it becomes possible to simplify circuit design and reduce overall system complexity. Furthermore, there is ongoing research into materials that exhibit variable resistance properties under different conditions or stimuli. These so-called "smart" or "adaptive" resistive materials could have applications in sensors, actuators, energy harvesting systems, and more. The ability to dynamically adjust resistance levels opens up new possibilities for optimizing device performance in real-time. Additionally, advancements in manufacturing processes are likely to enhance resistor reliability and precision. Techniques like laser trimming allow for precise adjustment of resistance values after production while maintaining tight tolerances. The future holds great promise for resistor technology. As demand grows for smaller yet more capable electronic devices, researchers continue to push boundaries and explore innovative ways to improve resistor performance and functionality. Conclusion In this comprehensive guide, we have explored the world of resistors and their significance in electronic circuits. Resistors are essential components that control the flow of electric current and help to regulate voltage levels. They come in different types, each with its own unique characteristics and applications. We learned how to identify a resistor's value by reading its color-coded bands or using digital multimeters. Understanding these values is crucial for selecting the right resistor for your project. Resistors play a vital role in various electronic circuits, including voltage dividers, signal conditioning, current limiting, and temperature sensing. Their ability to resist the flow of electric current ensures proper functioning and prevents damage to sensitive components. From household appliances to complex industrial systems, resistors find applications in diverse fields such as telecommunications, automotive technology, medical devices, aerospace engineering, and more. The versatility of resistors makes them indispensable in modern electronics. When selecting a resistor for your project, consider factors like resistance value tolerance, power rating capacity, and environmental conditions. Ensure compatibility with other circuit components while also keeping cost-effectiveness in mind. Troubleshooting common issues with resistors requires careful examination of connections, proper soldering techniques, and ensuring no overheating occurs. Understanding potential problems can save time and prevent costly mistakes when working on electronic projects. As technology continues to evolve rapidly, we can expect future developments in resistor technology. Advancements may include smaller form factors with higher power ratings, enhanced thermal management capabilities, improved accuracy through advanced manufacturing techniques, or even innovative materials that offer superior performance characteristics. In conclusion, resistors are fundamental building blocks of electronic circuits. Their ability to control electrical currents is crucial for maintaining stability and protecting other components from damage. By understanding different types of resistors and how they function within an electrical system, you can ensure optimal performance in all your electronic projects. Align properly with your specific requirements and project goals. So, whether you're a seasoned electronics enthusiast or just starting your journey into the world of resistors, you now have a solid foundation to appreciate their importance and use them effectively in your electronic designs. As you continue to explore and experiment with resistors, you'll gain valuable hands-on experience that will deepen your understanding of these essential components. Remember, the electrifying world of resistors is vast and ever-evolving, offering endless possibilities for innovation and creativity. Embrace the challenges and opportunities that come with working with resistors, and let your electronic projects shine with precision and reliability. Happy tinkering!
